Description

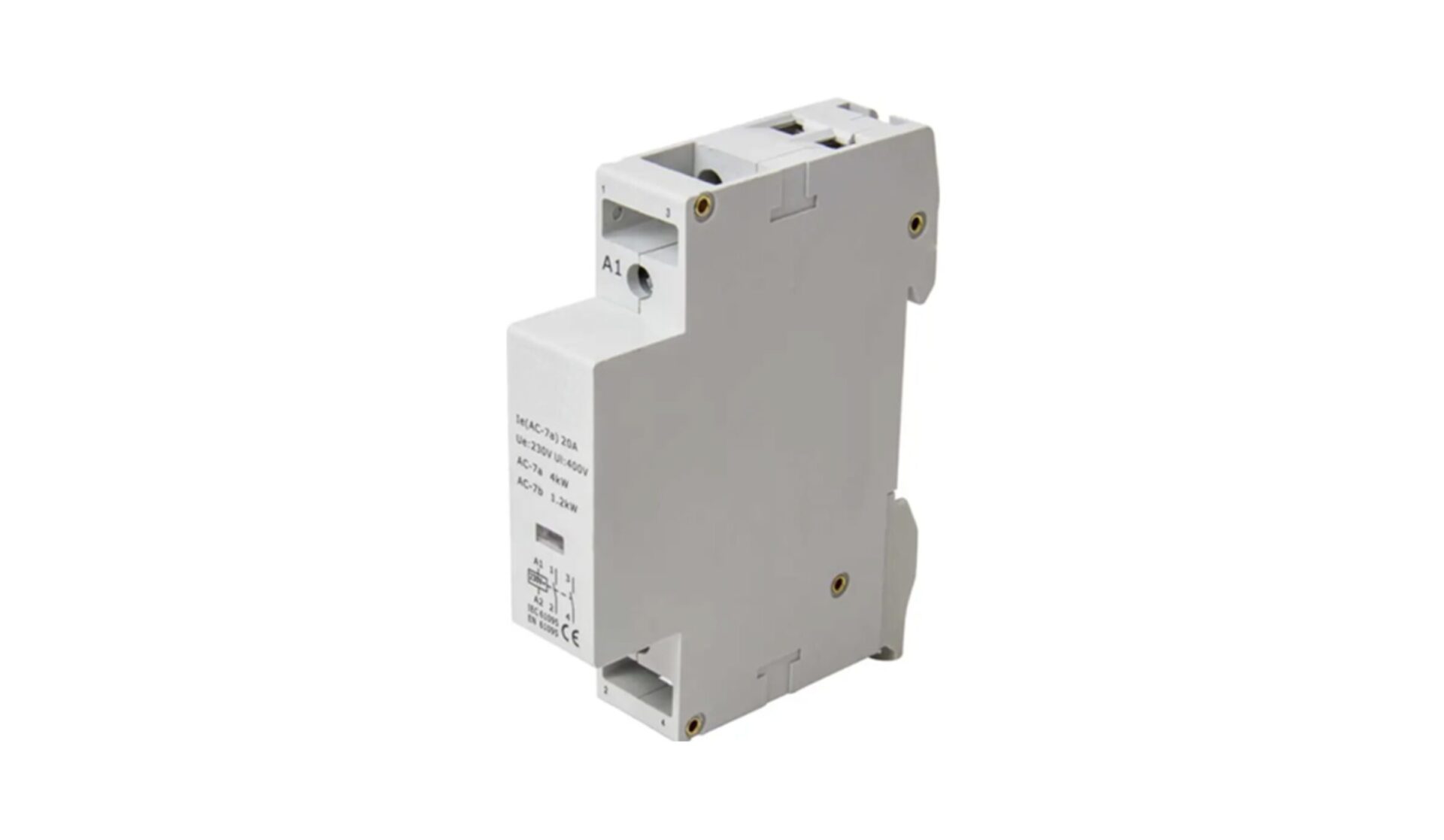

- 20Amp load
- 2 Poles
- Normally open contact composition
- Suitable for use with MD2 thermostat
- Suitable for use with 6kW Soft Start
- Increases Heater Capacity: Enables the wiring of more high-powered heaters into a single MD2 thermostat, enhancing the heating system’s capacity.
- Supports High-Power Applications: Ideal for larger commercial spaces and high-output environments like hot yoga/Bikram studios where higher power loads are common.
- Enhanced Load Management: Acts as a switch that can control up to 20Amps of heaters, allowing the MD2 thermostat to manage multiple contactors simultaneously for higher load limits.
- Compatible with MD2 Thermostat: Works seamlessly with the MD2 mains-powered WiFi thermostat, which can handle up to 3.6kW or 16Amps, making it suitable for various heating scenarios.
- Improves System Efficiency: Facilitates the control of several heaters with a single thermostat, optimizing the overall heating system for better performance.
- Supports Soft Start Integration: When using multiple 20Amp relays, the integration of 6kW Soft Starts helps manage potential inrush currents, ensuring smooth and reliable operation.
- Poles description: 2 Pole
- Power pole contact composition: 2 Normally Open
- Rated operational voltage: <= 250 V AC
- Control circuit voltage: 220…240 V AC 50 Hz
- Rated breaking capacity: 68 A at 400 V for power circuit conforming to IEC 61095
- Control type: Remote control
- Mounting mode: Clip-on
- Net weight: 0.11 kg
- IP Rating: IP40 (suitable for indoor use only)
- Warranty: 24 months
